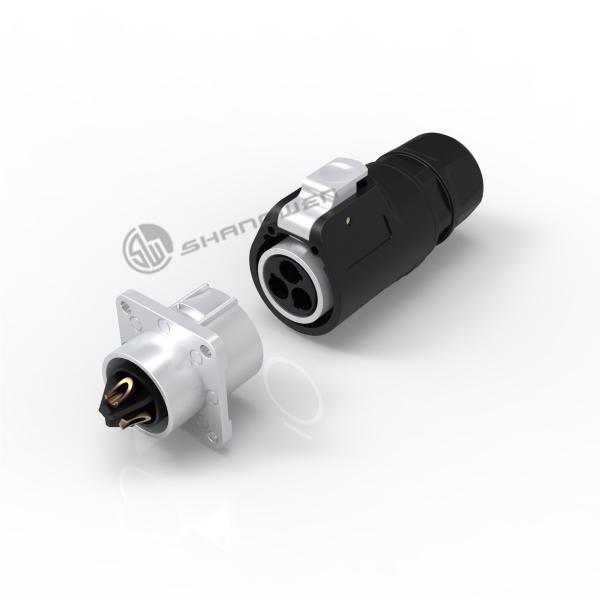

Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female

Name: Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female
Brand: SHANGWEN
Price: 1.60 USD

Quality Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female wholesale

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SW3AM-K

Packaging Details : 10pcs/sample bag
25pcs/Blister box(23cm x 23cm)
500pcs/carton (51cm x 26cm x 34cm)

MOQ : 10

Price : $1.60 - $3.60/pieces

Name : Metal IP67 Power Connector

Gender : Female

Industrial electronics : accessories

Multiple cores : 2,3,4,5,6,9,3+9 pin support

Features : Quick, simple self locking system

Type : led display connector

Application : Power

Contact Now

Anti-interference 3 Core Metal Powercon Waterproof Female Connector For Industrial Equipment

Products Description

Power connector series-3 core female powercon(Metal material ,card buckle type)

Model : SW3AM-K ( outdoor use )

☑Semi-metallic style,which can meet the demands of anti-interference,high strength

and high corrosion resistance;

☑Adopt one key press button locking method,plug and play,fast and convenient;

☑The insulating parts of the shell are high-performance engineering plastics, and the flame retardant grade reaches UL94-V0

☑The connector is plated with gold/silver beryllium copper, which is oxidation and corrosion resistant to ensure fast signal

transmission and electrical conductivity

☑Precision waterproof design,with high waterproof level,no fear of wading environment;

☑Connection mode:

1. Screw clamping and welding

2. Lock the cable with screws

☑Adopt high-strength structural materials, pressure-resistant structure design,can withstand greater vibration and shock;

☑High-power industrial waterproof connector - waterproof, moisture-proof and dust proof

Metal IP67 Power Connector Anti Interference Waterproof 3 Pin Connector Female

1. Electrical parameters

Contacts NO.	Φ2.0* 3 pin
Rated current	20A
Rated voltage	250V AC
Contact resistance	≤4mΩ
Withstand voltage	2500V AC
Insulation resistance	＞1000MΩ

2. Mechanical parameters

Service life	＞1000 times
Power line	4mm²
Wire stripping length	φ9-12mm
Type of terminals	Soldering

3. Material and environmental parameters

Shell&insulated parts	PBT
Hardware metal	Zinc alloy
Contacts	Brass with gold-plated
Sealing	Silicone/rubber
Flame-retardant grade	UL94-V0
Temperature range	-30°C to +80°C
Temperature rise	Temperature rise < 30º at 20A, < 40º at 25A, < 50º at 30A
Protection level	IP65

4. Size reference (unit /mm)

5. Installation reference drawing

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1. Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2. What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3. Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4. Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5. What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6. Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
